QX28Y 4X200 Hydraulic Corner Notching machine 40-135 degree Variable Angle Cutting machine
Product Description,
Hydraulic Corner Angle Notching Machine is a kind of special cutting equipment, used in sheet metal processing edge or corner of the triangle gap, which is widely used in electrical appliances, metal cabinet, ventilation equipment, kitchen equipment, decorative materials, such as sheet metal processing field.
Main Features of this machine,
● The cutter is suitable for cutting CS (Carbon Steel) and SS (Stainless Steel)
● Hydraulic down driving style
● Angle adjustable from 40 to 135 Degree

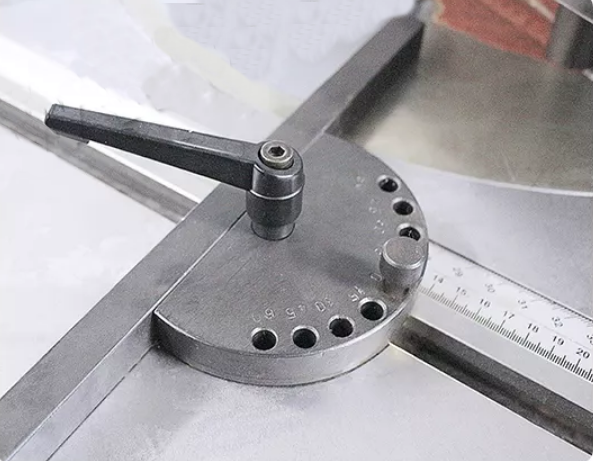

● Manual to adjust the cutting angle conviniently
● The blade clearance is adjusted according to the plate thickness
● Cutting stroke is adjustable, improve the cutting speed
● Single-step or Multi-steps
● Equipped with material pressing foot to prevent plate from distorting and deforming
● automatic lubrication all together
● Mobile foot pedal, simple and easy to operate
● Big amount and stock
Specification:
| Model | QX28Y-4x200 |
| Cutting angle | 40°-135° |
| Max. cutting Length | 200 x 200 mm |
| Max. cutting thickness | 4.0 mm (mild steel) |
| Max. cutting thickness | 2.0mm (stainless steel) |
| Max. travel of cuttting down | 40 mm |
| Stroke times | 30t/min |
| System pressure | 18 mpa |
| Volume of oil tank | 40L |
| Motor power | 4 kW |
| Voltage | 380V,50HZ,3Ph |
| Overall dimension | 1050×1000×1300 mm |
Standard accessories:
1. Hydraulic Station
2. Electric Case and Buttons panel
3. Mobile Foot pedal
4. Sheet metal compactor
5. Shearing Blades materials: 9CrSi
6. Movable Guarding arms with Rulers
