ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

Product Categories
PSL (WUHAN) SMART EQUIPMENT CO.LTD.
Contact Now

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

Brand Name : PSL,OEM

Model Number : QC11K-6x3200

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 45-60days

Packaging Details : Naked into container

Product name : QC11Y-6x3200 CNC Hydraulic shearing machine anti-twisting

Condition : New

Application : Industrial Metal Cutting,Metal plate cutting machine

Cutting material : Metal Stainless Steel Carbon Steel Aluminum,MS/SS/GI etc steel plate

Control mode : NC/CNC controller ELGO P40T, Delem DAC360T

Control axis : Back-gauge, cutting angle, cutting length and blades clearance

Main motor : Normal motor, Servo motor save energy

Throat gap : 100mm, 200mm, 500mm

Back-gauge : Ball screw + Linear guider, traveling 750mm

Back-gauge motor : Servo driver

Rear supporting : Rear pneumatic cutting supporting device for thin plate

Color : White+Blue,Gray black+White, customized

Voltage : Customized,220V/380V/400V 50HZ/60HZ

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support

Warranty : 1 Years

Contact Now

ELGO P40T CNC Control hydraulic Guillotine shearing machine with Rear pneumatic supporting
Features and characteristics,

1. Adopting UG finite element analysis method, CAD auxiliary design, the frame integral welding and vibration elimination internal stress treatment and heating methods to make the machine tool have higher rigidity and vibration resistance. Gate type tool holder structure, automatic fine adjustment of blade clearance, nitrogen accumulative return, rear cutting hydraulic anti-twisting system.

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

2. PNEUMATIC SHEET SUPPORT SYSTEM
Monobloc Panel Type support structure:

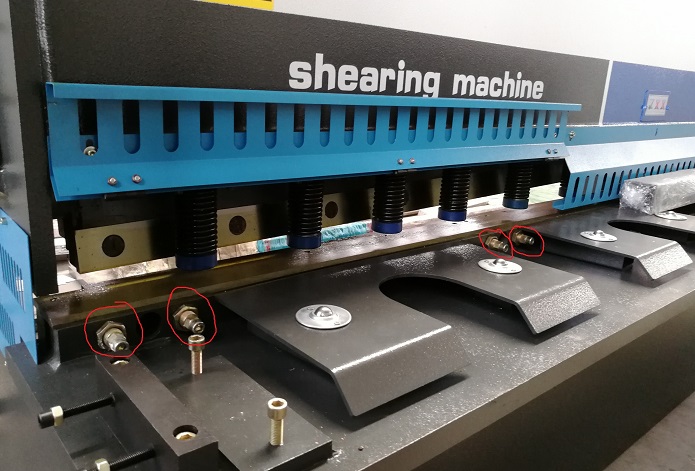

Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

3. This Shearing machine is a multi functions machine. CNC controller to ELGO P40T or DELEM DAC360T provide a user-friendly and versatile touch control solution for shears. Upon demand multiple back gauge axes, cutting angle, stroke length, blades gap/clearance and rear supporting up/down can be controlled, based on state of the art electronics. It improves the shearing effective and shearing quality.

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200 ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

4. Introducing advanced European technology and adopting integrated hydraulic control system, it has good reliability. more reliable and easy for maintenance.Siemens motors, The hydraulic system uses a bladder-type accumulator as an auxiliary energy source, and absorbs the pressure impact of the system at the same time, so that the machine tool runs smoothly and the noise is low..Allead pumps and Rexroth hydraulic valves are used onto the Shear.

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200 ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

5. Back gauge is assembled high precision ball screw and linear guider . the backgauge running is adjusted by servo motor and is easy adjusted and displayed by CNC controller Germany ELGO P40T, Delem DAC360T .

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

6. Equipped lighting-alignment, easy to align when shearing. special for some users who needs measure different sizes in two sides firstly, and then cut down according to the measured line.

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

7. Professional gate type tool holder structure. Safe fences have been assemblied onto the machine to avoid hands enter the holddown and cutting baldes, and ensure the workers operation safety.

The universal conveying ball supporting table is adopted to reduce the labor intensity of the operator.

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

8. Our standard machine is arremblied normal motor. But now one new high-power servo motor can be applied to our hydraulic plate shearing machine. Servo main motor can save energy and environmental protection and reduce production costs.

ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200 ELGO P40T CNC Rear Pneumatic Sheet Metal Shearing Machine 8mm 2mm QC11K-6x3200

Normal motor Servo motor

Specifications of Shear QC11K-6x4000,

Type QC11K-6x4000
Max. Cutting thickness

6mm (Mild steel)

3mm (stainless steel)
Max. Cutting width 4000mm
Strokes 6-30/min
Backgauge stroke 10-750mm
Shear angle 0.5-2.0Degree
Depth of throat 100mm
Height of working table 700mm
Width of working table 500mm
Main servo motor power 11kw
Oil pump 32L/min
Dimensions: 4850x1800x2150
Net weight Appro. 7100kg
Volt.

380V,50HZ

Standard configures,

Optional model Manufacturer Remarks
CNC system P40T
DAC360

ELGO

DELEM
Hydraulic system Main solenoid valves

Rexroth

Back gauge

Servo motor

Ball screw + Linear guider

ESTUN

TAIWAN
Oil pump Inner Gear oil pump

Allead
Main power

Normal motor,

Servo motor (Optional)

China

VEICHI
Front work table Big pallet and ball rack PSL
Security measures

Front steel fences protection

Back safe sensor protection (Optional)

 PSL
Back cutting supporting system Pneumatic

PSL
Blade clearance

Motorized adjustment

PSL
Electric parts Schneider Relay,Contactor Schneider
Foot switch Korean Kacon vertical pedal Kacon Korean

QC11K series main specifications,

Model

Max.

Tkn.

 Yield strength Max. Length Angle X.Stroke Power L*W*H(mm) Weight
QC11K-6*2500 6mm ≤450kN/cm 2500mm 0.5-2.5° 750mm 7.5kW 3140*1740*2040 4800Kg
QC11K-6*3200 6mm ≤450kN/cm 3200mm 0.5-2.5° 750mm 7.5KW 3750*1770*2150 5800Kg
QC11K-6*4000 6mm ≤450kN/cm 4000mm 0.5-2.5° 750mm 11KW 4830*1840*2150 7500Kg
QC11K-6*5000 6mm ≤450kN/cm 5000mm 0.5-2.5° 750mm 15KW 5830*1840*2150 13000Kg
QC11K-6*6000 6mm ≤450kN/cm 6000mm 0.5-3° 750mm 15KW 6480*2100*2300 18000Kg
QC11K-8*2500 8mm ≤450kN/cm 2500mm 0.5-2.5° 750mm 11KW 3040*1700*1700 5500Kg
QC11K-8*3200 8mm ≤450kN/cm 3200mm 0.5-2.5° 750mm 11KW 3860*1700*1700 6200Kg
QC11K-8*4000 8mm ≤450kN/cm 4000mm 0.5-2.5° 750mm 11KW 4640*1700*1700 7900Kg
QC11K-8*5000 8mm ≤450kN/cm 5000mm 0.5~3° 750mm 18.5KW 5400*2400*2000 13500Kg
QC11K-8*6000 8mm ≤450kN/cm 6000mm 0.5~3° 750mm 22KW 6480*2100*2350 19000Kg
QC11K-8*8000 8mm ≤450kN/cm 8000mm 0.5~3° 750mm 22KW 8580*2130*2350 29500Kg
QC11K-10*2500 10mm ≤450kN/cm 2500mm 0.5-2.5° 950mm 15KW 3040*1800*1700 6500Kg
QC11K-10*3200 10mm ≤450kN/cm 3200mm 0.5-2.5° 950mm 11KW 3850*1830*1900 7500Kg
QC11K-10*4000 10mm ≤450kN/cm 4000mm 0.5-2.5° 950mm 15KW 4650*2100*2000 11000Kg
QC11K-10*5000 10mm ≤450kN/cm 5000mm 0.5~3° 950mm 15KW 5750*2100*2000 16000Kg
QC11K-10*6000 10mm ≤450kN/cm 6000mm 0.5~3° 950mm 15KW 6500*2100*2300 24000Kg
QC11K-10*8000 10mm ≤450kN/cm 8000mm 0.5~3° 950mm 15KW 6800*2100*2300 32000Kg
QC11K-13*2500 13mm ≤450kN/cm 2500mm 0.5-2.5° 1000mm 15KW 3285*1830*2390 7500Kg
QC11K-13*3200 13mm ≤450kN/cm 3200mm 0.5-2.5° 1000mm 15KW 3855*1830*2390 9500Kg
QC11K-13*4000 13mm ≤450kN/cm 4000mm 0.5-2.5° 1000mm 18.5KW 4850*1830*2390 12500Kg
QC11K-13*6000 13mm ≤450kN/cm 6000mm 0.5~3° 1000mm 30KW 6850*1930*2650 30000Kg
QC11K-13*8000 13mm ≤450kN/cm 8000mm 0.5~3° 1000mm 30KW 8950*2130*2850 46000Kg
QC11K-13*9000 13mm ≤450kN/cm 9000mm 0.5~3° 1000mm 45KW 9980*2130*2850 65000Kg
QC11K-13*10000 13mm ≤450kN/cm 10000mm 0.5~3° 1000mm 45KW 11050*2500*3100 85000Kg
QC11K-16*2500 16mm ≤450kN/cm 2500mm 0.5~3° 1000mm 22KW 3440*1940*2830 9500Kg
QC11K-16*3200 16mm ≤450kN/cm 3200mm 0.5~3° 1000mm 22KW 4010*1940*2830 11000Kg
QC11K-16*4000 16mm ≤450kN/cm 4000mm 0.5~3° 1000mm 30KW 5010*1980*2830 15500Kg
QC11K-16*5000 16mm ≤450kN/cm 5000mm 0.5~3.0° 1000mm 30KW 5900*2600*2830 25000Kg
QC11K-16*6000 16mm ≤450kN/cm 6000mm 1~3.0° 1000mm 37KW 6900*2600*2830 36000Kg
QC11K-16*8000 16mm ≤450kN/cm 8000mm 1~3.0° 1000mm 45KW 8900*2900*3430 75000Kg
QC11K-20*2500 20mm ≤450kN/cm 2500mm 1~3° 1000mm 30KW 3440*1980*2830 14000Kg
QC11K-20*3200 20mm ≤450kN/cm 3200mm 1~3° 1000mm 30KW 4010*1900*2830 17000Kg
QC11K-20*4000 20mm ≤450kN/cm 4000mm 1~3.0° 1000mm 37KW 4850*2600*2900 22000Kg
QC11K-20*6000 20mm ≤450kN/cm 6000mm 1~3.0° 1000mm 55KW 6700*3000*3000 54000Kg
QC11K-30*2500 30mm ≤450kN/cm 2500mm 1~3.0° 1000mm 45KW 3440*1900*2830 25000Kg
QC11K-30*3200 30mm ≤450kN/cm 3200mm 1~3.0° 1000mm 45KW 4200*1900*3000 34000Kg

Remarks: If these parameters are not updated or changed in time, please understand and contact with us Chat online or email. THANKS.
